Dyna Coils $80 each with mounting
bracket, $140 pair (no mounts)
Dyna coils are available for any
Airhead Boxer, providing 35000 volts of reliable ignition power.
They can be used as a very cost-effectivereplacement for original
coils which have a problem with cracking. By matching the correct
coil, no control unit changes are necessary.
GREEN coils have 3 ohms primary resistance, for
points ignition systems and older dual-plug applications.
BROWN coils have 1.5 ohms primary resistance,for
'81 through '95 Airheads with factory electronic ignition.
$90 Each bracket and hardware included for use on
all single-coil models from 1981 to 1995.
New Bosch Coils For 1970 Through
1980 Models : /5 , /6 , and /7, R90S 6 volt $85 pair
These are the high-energy Bosch
coils known for years as " Blue Coils" because of their
distinctive color. Now, they're just natural aluminum but still
the great replacement coil for tired, aging original coils that
don't develop the full spark energy they might have had 30 or
more years ago. Very often, installing a new set of these coils
will restore easy starting, smooth running, and greater economy
than was normal with the original coils . These coils are 6 volt,
wired in series, just like the original design specification,
and they will fit directly into the original coil clamps. These
are the newest production from Bosch's new factory in Brazil.
Beware of "Blue Coils" that show up on the 'net at
a remarkably low price! There are several knock-offs out there,
clever copies visually but invariably of poor quality
Points Plate for /2 Boxers $95.00
Uses readily available and inexpensive
General Motors points and condensor. This allows not only great
economy but ease of maintenance as well. Ignition timing can be
set via turning a single Allen Screw - Voila. Simple.
III Electronic Ignition for 70-78 Boxers $199.95
Another well known product that
has been making boxer owners lives easier for many years. Works
with the original coils and spark advancer. Easier starting and
smoother running can be expected with little need for maintenance
5 years manufacturers warrenty.
Hall Sender $225.00
Brand - New, Genuine BMW Part. Fits
all R1100, 1150, and 850 four - valve models .
Plug Wires $40 Pair (55' - '69 Boxers only)
Spark Plug Wires are frequently
overlooked as a cause of hard starting or poor performance. Bad
spark plug wires can damage magneto coils on vintage BMWs as well.
These wires are correct in appearance and in function and have
0 ohms resistance to keep the mag coil cool.
Red, Blue or Yellow $35.00
Basic Black $25.00
All wires come with 5k ohm NGK caps
(as shown). Fit Airheads only.
K75 Plug Wire Set, all years/models $84.95
Same quality materials and correct
coil connector as on the 4 cylinder wire sets.Keep that K75 running
like an atomic clock.
Plug Wires for 4-Valve K100, K1100 $89.95/4
Fits 90-93 K1,K100RS and all
years K1100 models
These spark plug wires are made
from very good quality jacketed copper cable, with the correct
5K ohm resistor in the NGK caps. The caps are correctly sized
for a snug fit on the 12mm sized K plugs made with the screw-on
terminal nut on the end. The coil ends are the correct brass barrel
- end type for the K100, and clip-on types for the center stud
terminal found in the K75 and K1100 coil sockets. Thick rubber
boots at the coil end keep moisture away from the connectors inside.
The air-gap coil connectors aren't cheap, or easy to find other
than expensive original BMW parts. By using the exact correct
part, easy fit and long service are assured. Why pay the exorbitant
factory price, when these wire sets can restore smooth running
and efficiency to an engine suffering with 23 year old plug wires?
Do you run your car plug wires for 20 - plus years? Didn't think
so but if you do, the car needs help too!
Oilhead Plug Wires, 1994-2003 models $74.95
Fits all years of R850, R1100,
and R1150 4-Valve Twins
These top-quality replacement wires
are constructed from highest-quality components that are the same
as used by the original equipment manufacturer. The plug caps
are the CORRECT 90 degree bend, with grab areas for the removal
tool found in the tool kit. This pair of wires costs the same
as ONE wire does from BMW.
BP7ES - R75/5-6-7, R80/7, R80 G/S, R90/6 , R100/7 , all 1000cc twins from 1981 onward
B8ES - /2 with LK heads, R60/5 - 6 - 7, R65 all, R90S , R100S and RS before 1981
B8HS - R69S
D8EA - 2 valve K75 and K100 , F650 w / carb
DR8EA - 4 valve K 100, K 1100, F650 w / FI
D8HA - 12mm thread diameter, for lower hole in dual - plugged heads
Bosch plugs are no more. Happily
NGK fills the gap with the proper plugs to keep your Airhead,
F650 and K-Bike motoring along. NGK spark plugs are made to the
same level of quality, and incorporate all the same important
design features of the original Bosch part.
Ignition Control Unit for Boxer $60.00
Ignition Control Unit-Used on all
boxers with factory electronic ignition, up to 1993. These are
not from the original equipment supplier, but they are very reliable
and work the same in every way. Oh, and more thing: they cost
over a hundred dollars LESS than the originals! Take the money
you save and ride a few more miles :)

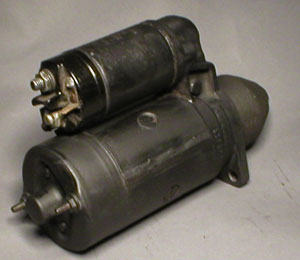

Starter Renewal $75 plus shipping and handling
Starters are robust, but over time,
the shaft bushings usually develop enough wear to cause internal
drag or interference when it tries to turn . This requires too
much current from the battery , and frequently there won't be
enough left for the ignition system to work . Hard starting can
frequently be directly attributed to excessive starter current
draw . Starter service includes armature shaft and drive gear
bushing replacement, commutator cleaning and truing, brush inspection,
and overall cleaning and lubrication. If more serious problems
are found, an exact quote will be provided before proceeding.

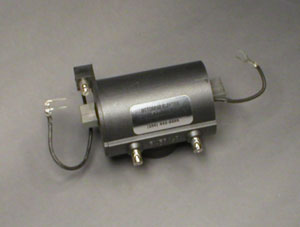

Magneto Coil '55-'69 Airheads R51/3 through /2 Twins $160.00
Great replacement for the ever-aging
and failure - prone original magneto coils. Almost all of the
original coils are now failing routinely. A sure indication of
this progressive failure is hard starting when hot. As it gets
worse, there may soon be misfiring at high speeds as well. These
coils are of modern, improved design and manufacture for a perfect
fit and restored reliability. Made with an external ground wire
connection for increased reliability , and the high-tech resins
and plastics used in their construction means they should help
keep your bike around for the next 50 years. Make it right with
a new condensor, $8.
(It is strongly recommended that
the condensor should be replaced whenever a new coil is fitted
. Old, failing condensors can cause serious coil problems on even
a new part . These new ones come with the wire made on, so there's
no tedious soldering like the originals.)
Original BMW parts for long life.
